Compaction

Wacker Neuson 12″ Vibration Plate 300 WP1030

Wacker Neuson 12″ Vibration Plate 300 WP1030

Specifications :

  • Operating weight: 50 kg
  • Centrifugal force: 12 kN
  • Base plate size W x L: 300 x 496 mm
  • Lowest operating height: 629 mm
  • Operating width: 300 mm
  • Frequency: 98Hz
  • Advance travel max. (depending on soil & environmental factors): 26 m/min
  • Surface capacity max. (depending on soil & environmental factors): 468 m2/h
  • Max. gradeability (depending on soil & environmental factors): 30 %



Per Day
£30

Extra Day
£20

Weekend
£55

5 day week
£70

7 day week
£90



Wacker Neuson 14″ Vibration Plate 350 WP1235

The vibratory plates of the WP range are extremely compact machines, which are perfect for compacting asphalt and interlocking paving stone, as well as the compaction of mixed soils in very confined spaces.

They are particularly useful for the construction of paths, as well as horticulture and landscaping. The perfect combination of optimally designed base plate and guide handle achieves superior manouevrability.

These machines are easy to guide around rocks and manhole covers, or along curbs, gutters, guide rails and buildings.

Features

  • Perfect asphalt compaction. The tapered edges of the base plate minimise the formation of track marks when turning the vibratory plate.
  • Comfortable surface compaction. The tapered base plate makes spot compaction easy.
  • Robust design minimises maintenance. The v-belt drive with all-round protection ensures longer belt life.
  • The base plate is made of wear resistant ductile graphite iron.
  • Three handling points in the bracket make transport easy and the folding guide handle turns it into a compact unit.

Specifications

  • Operating height 606mm
  • Size of base plate (W x L) 350mm x 546mm
  • Operating weight 60kg
  • Compacted area (soil) 567m2/h
  • Forward speed (soil) 27m/min
  • Vibration frequency 98Hz
  • Max. centrifugal force 12kN
  • Honda GX 120 engine
  • Fuel tank capacity 2.5 Litres
  • Fuel consumption 0.8 l/h

Per Day
£35

Extra Day
£20

Weekend
£55

5 day week
£70

7 day week
£90

Wacker Neuson 14" Vibration Plate 350 WP1235
Wacker Neuson 14" Vibration Plate 400 WP1540

Wacker Neuson 14″ Vibration Plate 400 WP1540

 Compact single direction vibratory plate, compacts reliably on any compactor.

  • The control handle allows for effortless turning and manoeuvring
  • Sturdy design with minimum maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
  • A sturdy tubular frame reliably protects the engine and water tank
  • Suspension points in the protective cage allow for safe transport. The guide handle that can be folded forward converts the unit into a compact unit in no time.


Per Day
£35

Extra Day
£20

Weekend
£55

5 day week
£70

7 day week
£90

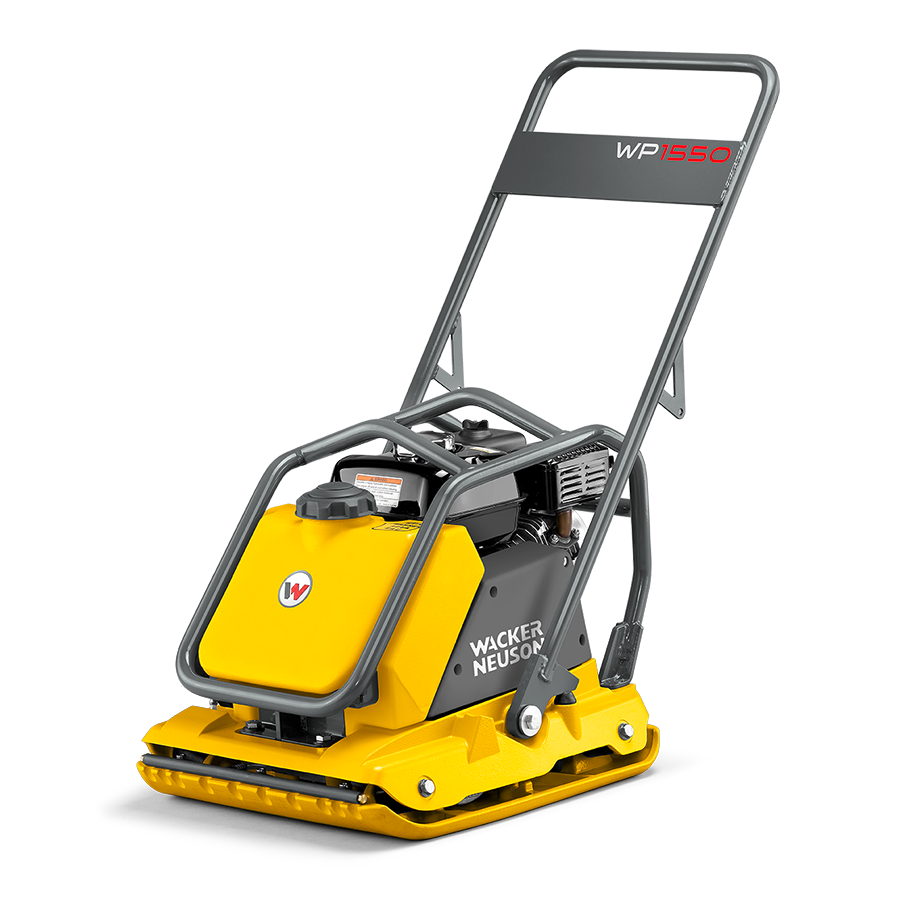

Wacker Neuson 16″ Vibration Plate 500 WP1550

Compact single direction vibratory plate, compacts reliably on any compactor

  • The control handle allows for effortless turning and manoeuvring
  • Flawless asphalt compaction: The chamfered edges of the base plate minimise the formation of stress edges when the vibratory plate turns
  • Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron
  • A sturdy tubular frame reliably protects the engine and water tank
  • Suspension points in the protective cage allow for an effortless and sturdy transport. The guide handle that can be folded forward converts the unit into a compact unit in no time



Per Day
£35

Extra Day
£25

Weekend
£60

5 day week
£80

7 day week
£100



Wacker Neuson 16" Vibration Plate 500 WP1550
Bomag BT 60 Trench Compactor

Bomag BT 60 Trench Compactor

Soil compaction – a key application in civil engineering to achieve sound foundations. Robust, reliable and extremely tough: these 4-stroke engine BOMAG tampers are ideal for trench and sewage systems, landscaping, compaction on backfill, foundations, patching and repairs. Less effort to operate, durable, designed to deliver high performance.

Specifications

Standards

  • Self-cleaning air filter housing
  • Single point lifting device
  • Combination of engine stop/fuel switch
  • h-/ rpm meter
  • Plastic castor as loading aid
  • Recoil starter

Per Day
£50

Extra Day
£50

Weekend
£100

5 day week
£140

7 day week
£200



Wacker Neuson DPU 2540 Forward & Reverse Diesel

The DPU models with 25kN centrifugal force belong to the class of light all-rounders, which are ideal for compacting paving stones, horticulture and landscaping, and the maintenance of roads, paths and parking lots. The machines of this class offer a kind of job site mobility that is unique in the market. Their great agility and compact design make these vibratory plates the perfect choice for continuous use by professionals when compacting sidewalks, trenches and other confined ground spaces,

Per Day
£50

Extra Day
£50

Weekend
£100

5 day week
£140

7 day week
£200



    Wacker Neuson DPU 2540 Forward & Reverse Diesel
    Wacker Neuson DPU1550 Forward & Reverse Petrol

    Wacker Neuson DPU1550 Forward & Reverse Petrol

    These all-rounders for applications such as interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility. These plates are also extremely reliable. Their robustness as well as the sum of many well thought out details make sure of this. Amongst these details we find the throttle lever that retracts for its protection or an especially job site oriented fuel tank pipe.

    Per Day
    £50

    Extra Day
    £50

    Weekend
    £100

    5 day week
    £140

    7 day week
    £200
