Digger Accessories

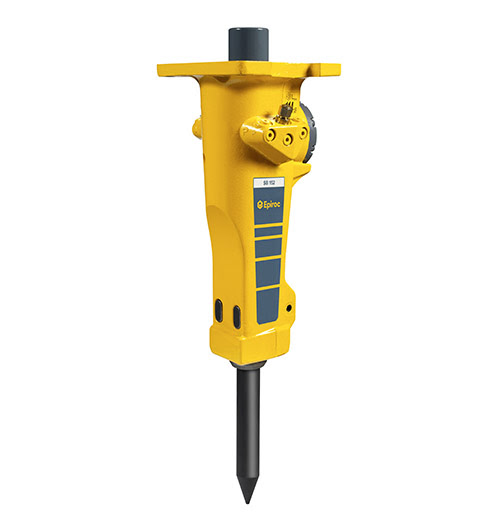

Micro Digger Breaker SB152

The SB range of hydraulic breakers represent a unique concept in breaker technology with a patented, one-piece housing construction, the Solid Body concept. SB breakers have an outstanding power to weight ratio and are quick and easy to position. One piecing housing also means fewer components and less maintenance. For application on road construction, smaller trenching and demolition jobs, building renovation, landscaping and boulder size reduction in quarries.

Specification

Carrier weight class: 1.9-4.5 T

Service weight: 140kg

Oil flow: 25-45 l/min

Operating Pressure: 100-150 bar

Impact rate: 850-1900 blows/min

Working tool diameter: 50mm

Working length of tool: 250mm

Max. hydr. Input power: 11kW

Sound Power, guaranteed: 114 dB(A)

Sound Pressure level (r=10m): 85 dB(A)

Mini Digger Breaker SB102

3 Ton Digger Breaker

Used on our Kubota 3.0 Ton Diggers this breakers represent a unique concept in breaker technology with a patented, one-piece housing construction, the Solid Body concept. SB breakers have an outstanding power to weight ratio and are quick and easy to position. One piecing housing also means fewer components.

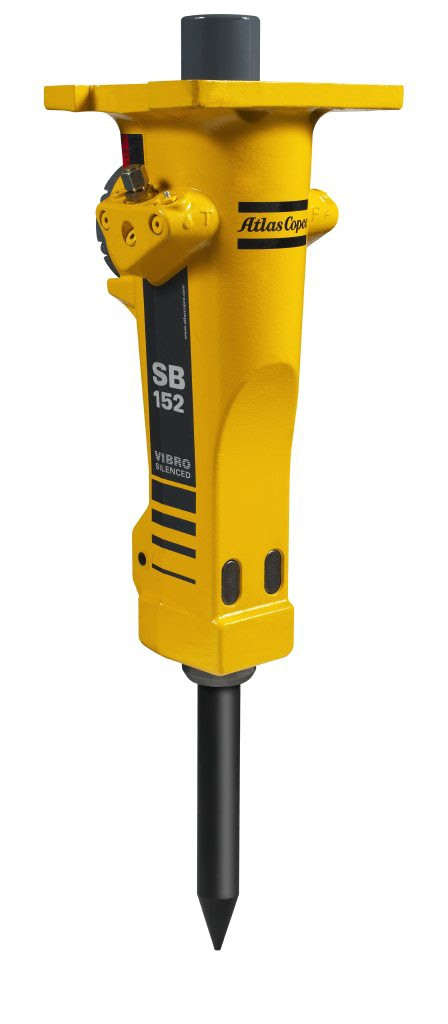

SB 152
Description SB 152
Part no 8460 0300 40
Impact energy (joule)
Impact frequency (blows/min) 840 – 1920
Length without tool (mm) 662
Operating Weight (kg) 140
Working pressure (bar) 100 – 150
Oil flow (l/min) 25 – 45
Tool shank diam. (mm) 50
Carrier weight Backhoe (t)
Carrier weight Excavator (t) 1,9 – 4,5
Carrier weight Skidsteer (t)
AEM Impact energy (Joule)
AEM Impact rate (blows/min)
AEM Supply line pressure (bar)
AEM Test oil flow (l/min)

3 Ton Digger Auger

Auger Torque – X2500 Earth Drill to suit 1.5 – 3T Mini Excavators

• High quality hydraulic motor.
• Output shaft bearings
• Torque is amplified by using the unique AugerTorque planetary gearbox.
• Non-Dislodgement shaft is a one piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment.
